Size, position, alignment, spacing

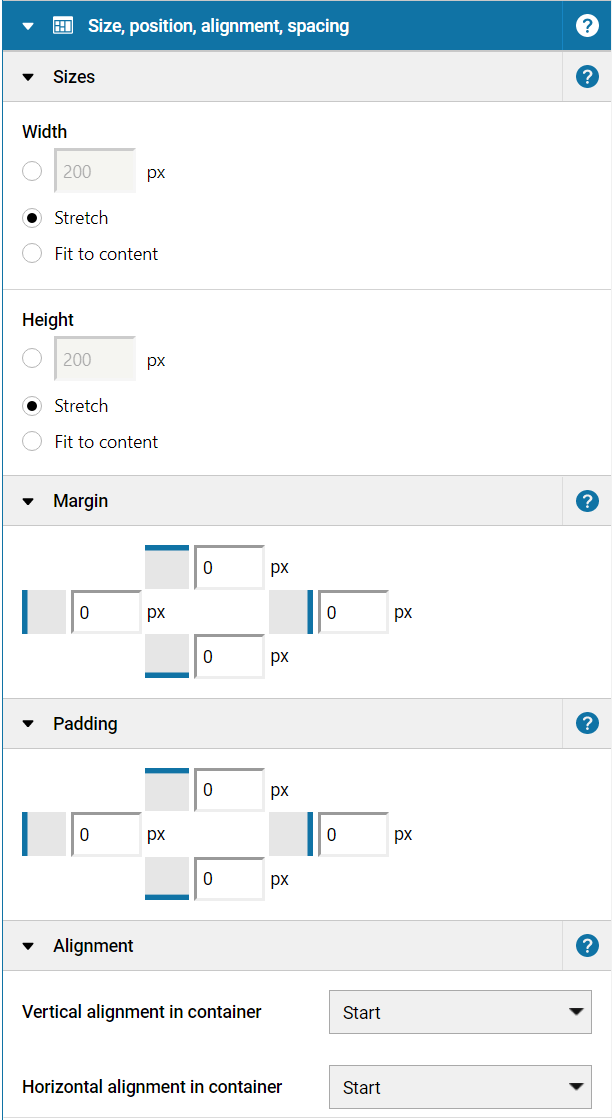

This tab allows you to adjust the size and position of your elements, as well as their distance to other elements.

1. Size

You can define a specific Size (height and width, measured in pixels) for elements.

Alternatively you can select Stretch which will automatically assign as much space as available to the element.
Having elements automatically use the available space can be especially useful when designing content that dynamically adapts to various different display sizes for your client machines / displays.

Containers additionally provide a Fit to content option that causes the container to dynamically adjust its size depending on the size of its child elements (content).

2. Position

For elements that are in a container with free positioning, the Position option is provided with the X and Y functions, which allow you to precisely define the position of the element in the container.

3. Margin

Margin defines the distance of an element to other elements around it, measured from the element's border.

4. Padding

Padding defines the distance between the borders of an element and the content (texts, images, etc.) within that element.

5. Alignment

You can adjust the horizontal and vertical Alignment of an element within its parent container. For example, if the parent container is set to arrange its child elements vertically, setting the horizontal alignment of an element to Start will result in that element being positioned as far left as possible. In turn, setting the value to End would position the element to the far right.
