Project page (Content view, Inspector)

After creating your project, you can start editing it to fit your needs. To make editing your projects as easy and self-explanatory as possible the SiteCaster Editor is, for the most part, a "WYSIWYG" editor ("What you see is what you get"). To ensure all editor functions are easily accessible, the browser window should be at least 1280 pixels wide. Additionally, we recommend setting the resolution of the editor to match that of the device(s) you want to publish your project to. You can find additional information on resolution settings, etc. in the View chapter.

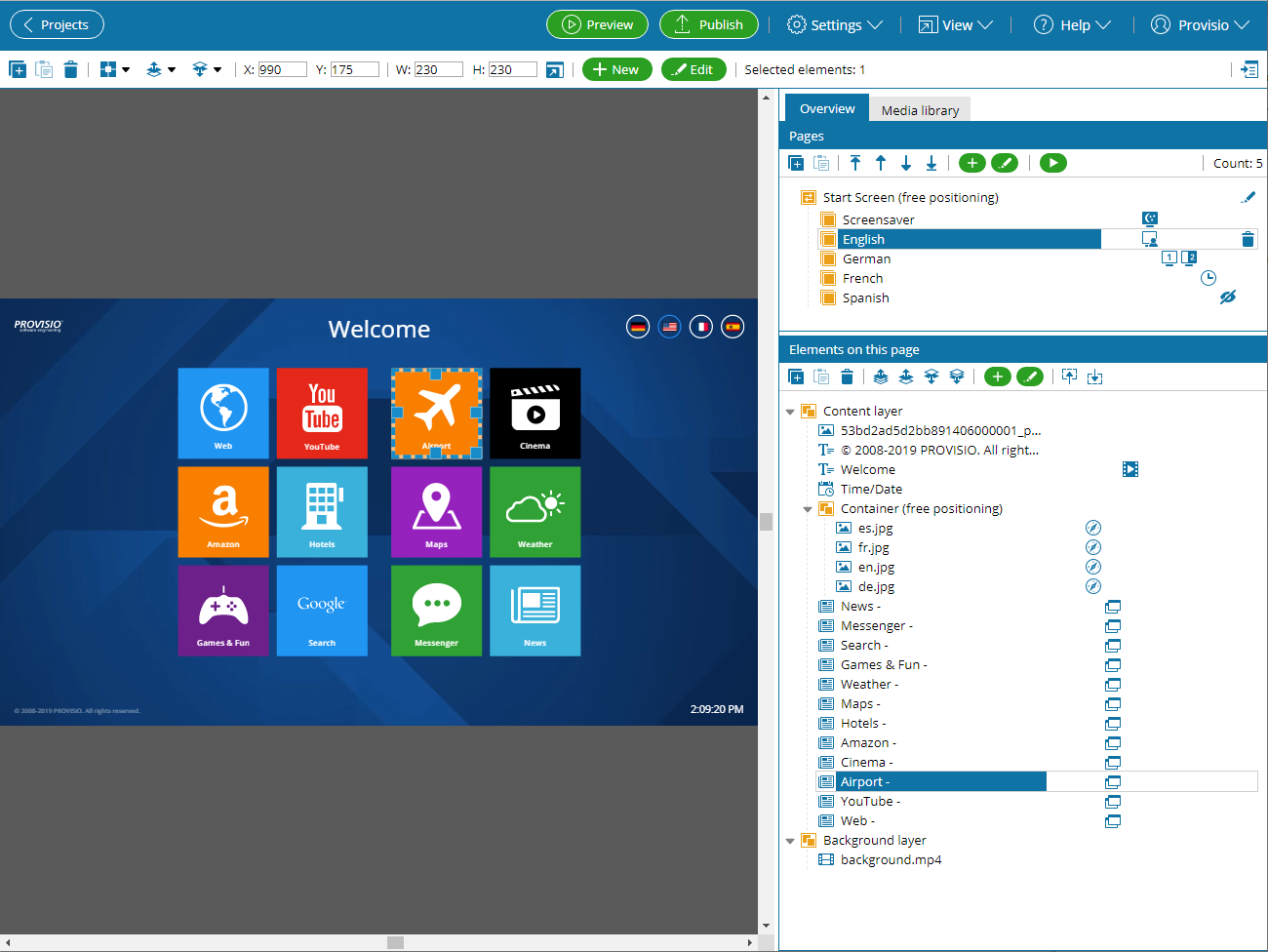

The project page is divided into two sections. On the left you can find the content view, where the project to be edited is displayed with it's elements. On the right the inspector is located which is divided in the Overview, Properties, and the Media library tab.

1. Content view

The content view is the workspace of the editor, in which you can follow all changes of the project and change the size of the elements directly. Inside the content view you can directly select single or multiple elements with the mouse by clicking or dragging a selection frame. Afterwards the selected element is presented in the overview on the right and can be further edited in its properties. Selected elements are highlighted in the content view by a blue or yellow (container elements) element boundaries and in the overview by a dark blue bar. Selected elements can be positioned with the mouse by drag and drop and can be resized with the handles on the element boundaries. Please note that with resizing with the handles a grid of 5 pixels is used. If you want to adjust the size more precisely you have to press Alt to move the element boundary in 1 px increments. Additionally, you can use the Size setting in the toolbar or the properties dialog. By clicking the Edit button in the toolbar, you can access the properties dialog of a selected, where you can edit the basic properties of an element. A double-click on an element in the overview or in the content view also opens the properties dialog of the respective element in the inspector.

Over the button hide/show inspector you can expand the content view over the whole screen. The Center view function lets you re-center the project in the content view after scrolling.

Please note:
We recommend adjusting the resolution of the editor to the resolution of client in the View setting of the editor. That way you see the display of the project the way it will be displayed on your client machine. If you are using several clients with different resolutions, we recommend to test this resolution in the Preview

 Inspector (Overview, Media library, Properties)

The inspector is divided into the two tabs; Overview and Media library. Using the toolbars in the sections Pages and Elements on this page page elements and standard elements can be edited, copied, moved and deleted. Pressing the Edit button in the respective toolbar opens the properties dialog of an element in another tab in the Inspector A double-click on an element in the overview or in the content view also opens the properties dialog of the respective element in the inspector.

2.1 Overview

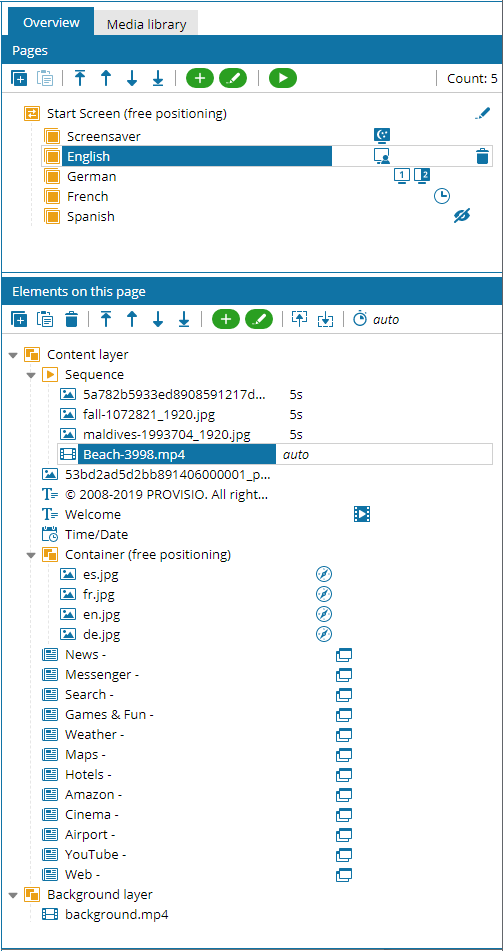

The Overview tab in the inspector gives you an overview of the pages and elements contained in this project. Within the overview you can select elements using the mouse and then edit, copy, move or insert new elements into the project. In addition, icons in the overview show whether pop-ups, display conditions or navigation links have been set on the respective elements. More information about the overview can be found here.

2.2 Media library

The Media Library tab lists all uploaded files of the opened project and the files of unlocked projects. The files can be added to the currently opened project by selecting them and clicking the Add button. More information about the media library can be found here.

2.2 Element properties

Clicking the Edit button in the toolbar or double-clicking on an element in the content view or overview opens the properties dialog in the Properties tab, where you can adjust the individual properties of the selected element. The respective properties of an element are discussed in detail in the chapter Standard elements
